How It Works¶

This page explains what charucal actually computes during calibration and at runtime. You don't need to understand any of this to use the library, but it helps when things go wrong.

Step 1. Capture the Images¶

To calibrate the cameras, we need to capture images of the ChArUco board from all cameras. It is extremely important that the ChArUco board is clearly visible in all images. A ChArUco board is a chessboard with ArUco markers on it. The ArUco markers allow us to tell which corner is which, making it extremely useful for stitching images together.

import cv2

# Initialize the cameras.
cam_left = cv2.VideoCapture(0)
cam_center = cv2.VideoCapture(1)
cam_right = cv2.VideoCapture(2)

# Get the frames of each camera.
ret, frame_left = cam_left.read()
ret, frame_center = cam_center.read()
ret, frame_right = cam_right.read()

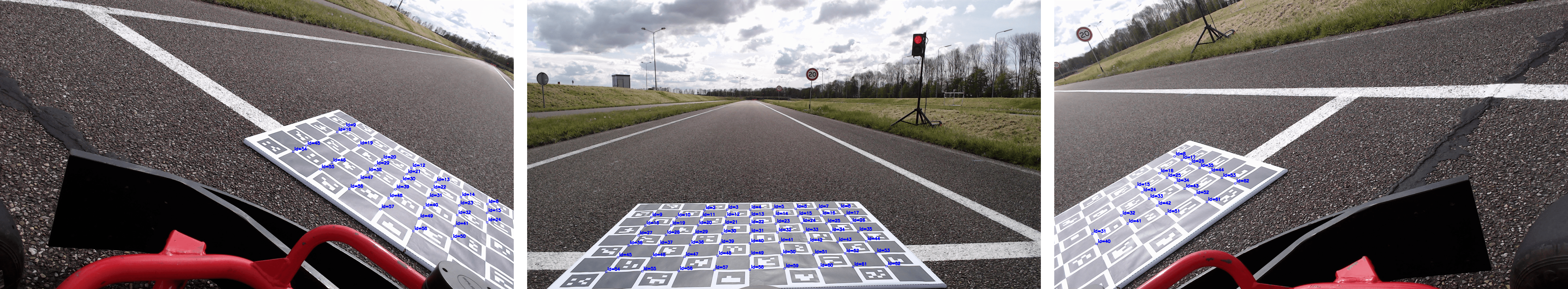

Step 2. Detect the Corners¶

Next up is locating the corners of the ChArUco board in all images. OpenCV has a built-in module for dealing with ArUco markers, called cv2.aruco. We can use this module to find the corners of the ChArUco board in each image.

Step 3. Calibrate the Cameras¶

The next step is to find the homographies between the cameras. A homography is a transformation matrix that maps points from one image to another.

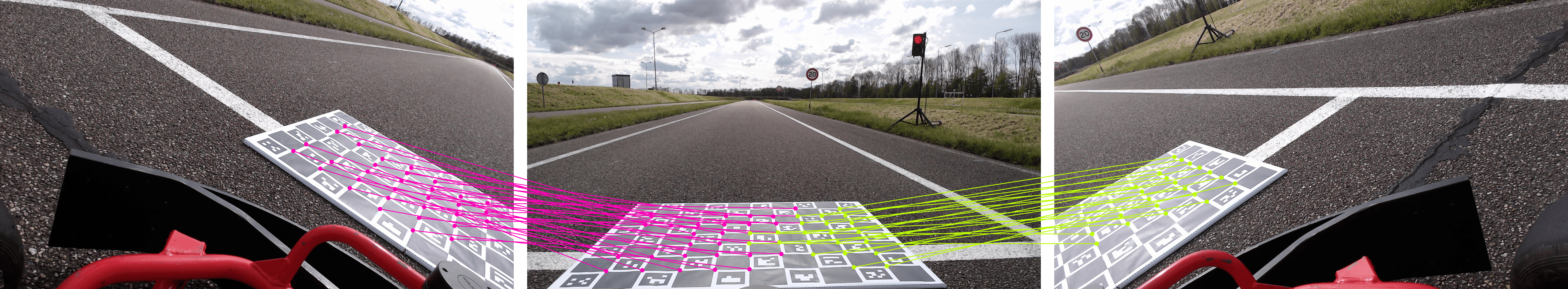

Step 3.1. Find the inter-camera homographies¶

For each camera, we find the homography that maps its pixel space to the reference camera's pixel space. The reference camera is selected automatically as the one with the most shared corners across all other cameras, though it can also be set manually.

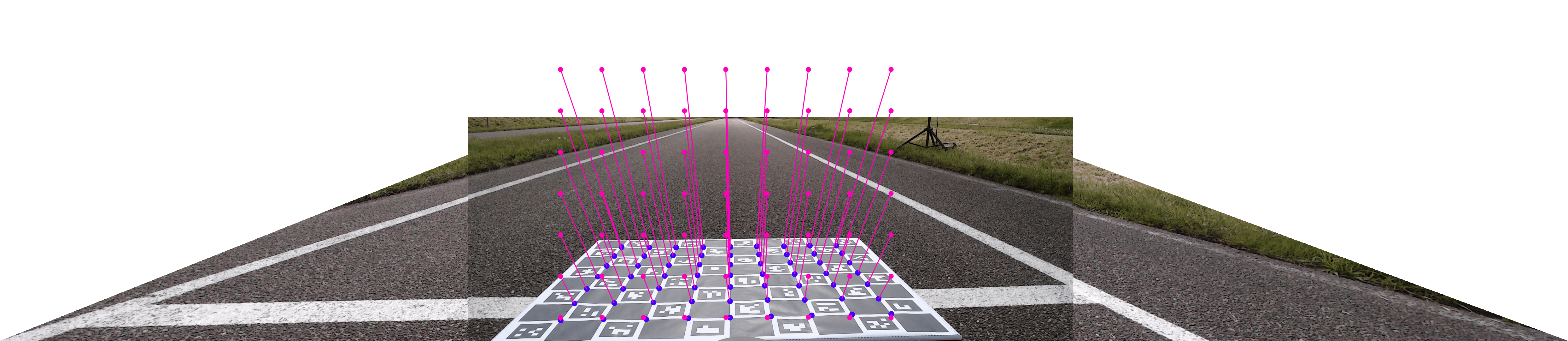

Step 3.2. Find the top-down homography¶

We also find the homography that maps the reference camera's pixel space to real-world meters, using the ChArUco board's known physical dimensions.

The result is saved to a JSON file so you don't need to recalibrate between sessions.

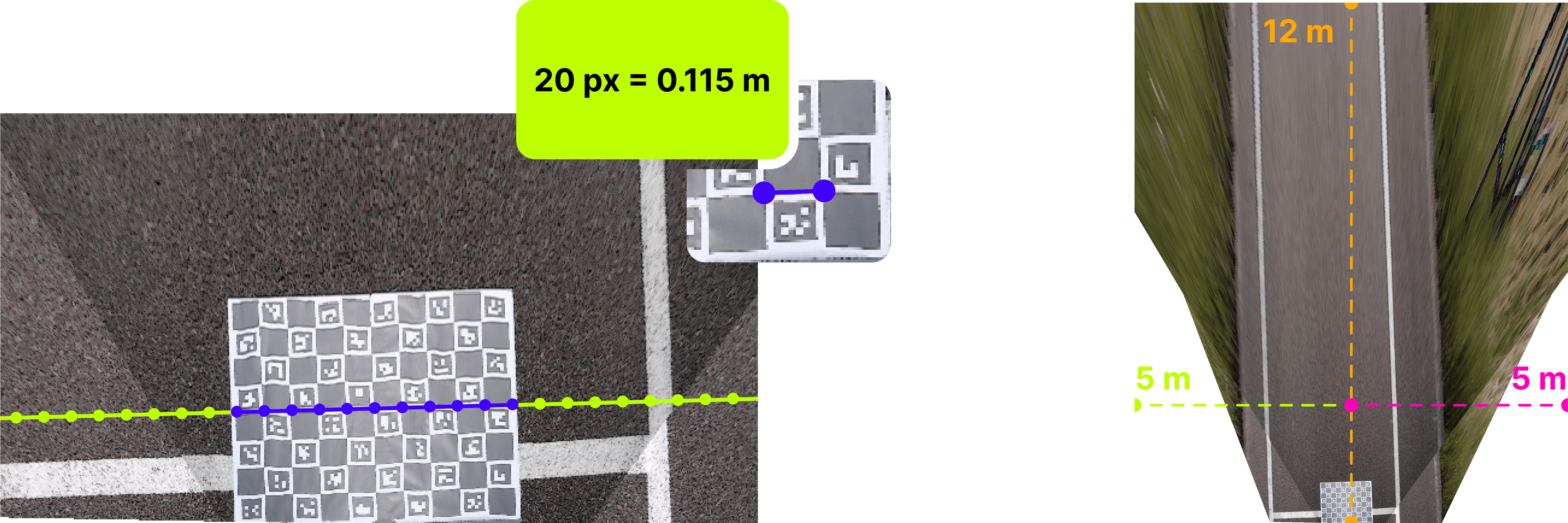

Step 4. Transform the Images¶

The RenderDistance you provide determines what part of the world to show. It defines how many meters ahead and to each side of the camera the output image should cover. Since the ChArUco board can be placed at any angle, the top-down view would be rotated depending on how it was placed. We correct for this so the output is always properly aligned with the reference camera.

To figure out what to draw for each pixel in the output, we work backwards. Every pixel in the output represents a position in the real world, and from the calibration we know exactly how each of those world positions maps back to a pixel in each source camera. We precompute this mapping for the entire output canvas so that at runtime we can produce the top-down image as fast as possible.
